Membrane Punctures, Tears, and Foot Traffic Damage

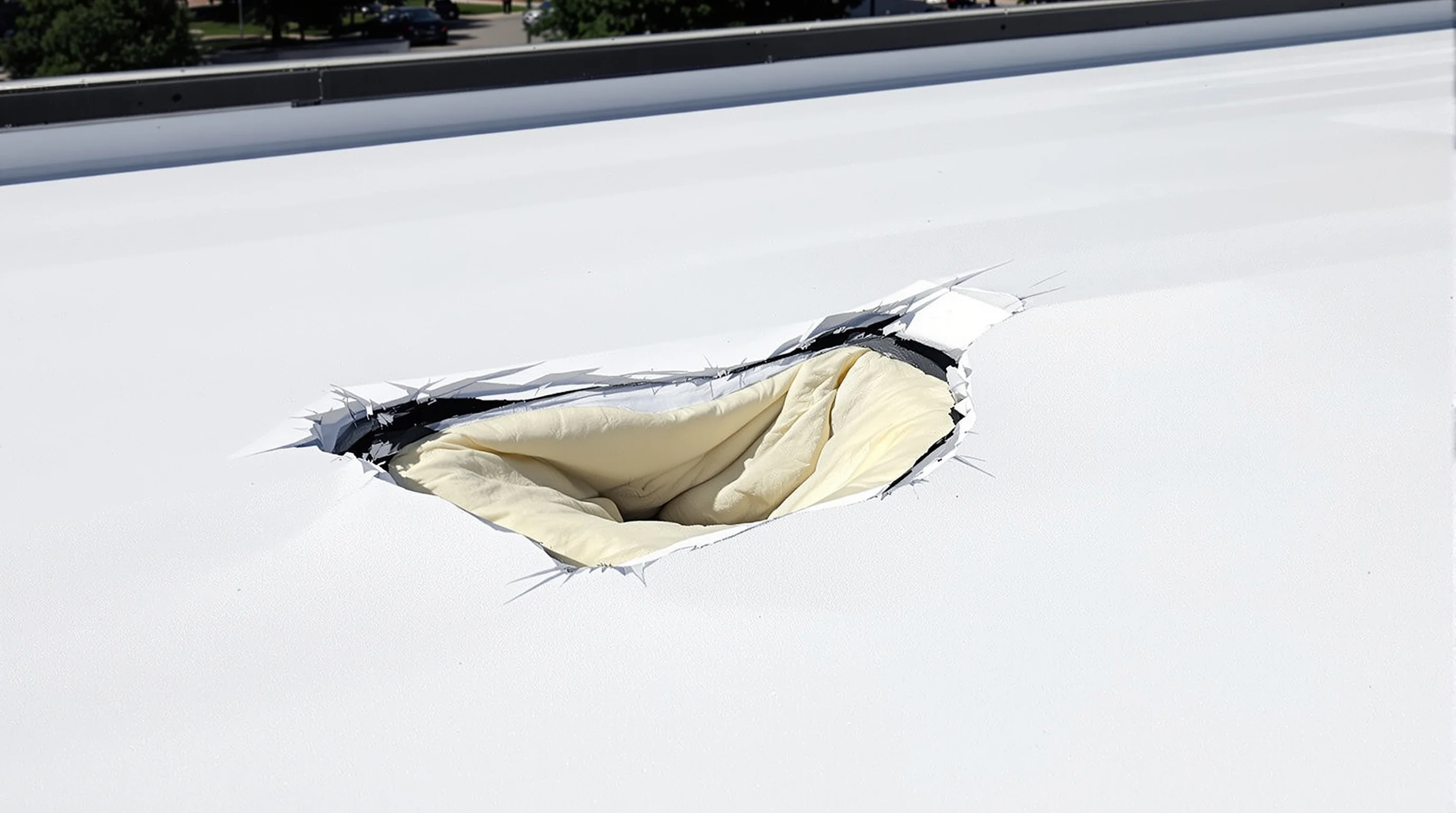

Physical damage to a commercial flat roof
The challenge with physical damage is that it often goes undetected for months or years. A 1/4-inch puncture in the center of a 20,000-square-foot roof is nearly invisible during a visual inspection unless the inspector walks directly over it. Meanwhile, water migrating through the puncture saturates the
Types of Physical Membrane Damage
Punctures
Punctures are the most common form of physical membrane damage and are caused by concentrated point loads that exceed the membrane's puncture resistance. Common causes include dropped tools and fasteners during HVAC maintenance, dragged equipment across the membrane surface, windblown debris such as tree branches and construction materials, and bird pecking (particularly on older, softened membranes). A standard 60-
Puncture severity depends on size, location, and whether the substrate beneath is also compromised. A clean, small puncture (under 1/4 inch) in the field of the roof is typically a straightforward repair costing $150-300. A larger puncture at a seam or flashing transition, or one that has been leaking undetected for months, can require a much more extensive repair involving insulation replacement, which increases costs to $500-2,000 per damaged area.
Tears and Cuts
Tears occur when lateral force is applied to the membrane — dragging a heavy object, wind-driven debris sliding across the surface, or thermal movement pulling the membrane apart at a weak point. Tears differ from punctures in that they create a linear opening that is harder to seal permanently. A 6-inch tear in a single-ply membrane compromises far more waterproofing area than its length suggests, because water wicks along the tear line and enters the roof assembly at multiple points.
Cuts from blades and sharp tools are surprisingly common and almost always occur during work on rooftop equipment. HVAC technicians cutting refrigerant line insulation, electricians stripping wire, and roofers trimming membrane on adjacent sections have all accidentally cut through the membrane beneath their work. A
Abrasion and Scuffing
Repeated foot traffic across the same membrane area grinds away the surface layer, thinning the membrane and reducing its waterproofing capacity. This is a gradual process that typically takes years to produce a leak, but it is cumulative and irreversible. Traffic paths between rooftop access points and HVAC equipment are the most affected areas. On a 10-year-old roof with regular HVAC maintenance traffic, membrane thickness in the traffic paths may be reduced by 20-40% compared to non-trafficked areas.
Impact Damage
Large falling objects — tree limbs, antenna components, construction materials from adjacent buildings — can cause impact damage that affects the membrane, insulation, and sometimes the deck structure beneath. Impact damage is distinguished from simple punctures by the area of effect: the force of impact compresses the insulation and may crack or dent the deck, creating a low spot that ponds water even after the membrane is repaired. Impact damage from hail is covered in our wind and storm damage guide.
Assessing Membrane Damage
Visual Inspection
Walk the entire roof surface in a systematic grid pattern, focusing on areas within 10 feet of any rooftop equipment, along traffic paths, and in locations where debris tends to accumulate. Mark each area of damage with chalk or a temporary marker. Record the type (puncture, tear, abrasion), approximate size, and location relative to permanent roof features. Take photographs of each damaged area with a ruler or reference object for scale.
Not all membrane damage is visible from above. Small punctures can be concealed by dirt, coatings, or granule surfacing. On modified bitumen roofs, punctures through the cap sheet may not be visible if the underlying base sheet is still intact. On white single-ply membranes, scuff marks from foot traffic may appear minor from a standing position but reveal significant membrane thinning on closer inspection.
Moisture Survey
When physical damage is suspected but cannot be confirmed visually, an infrared moisture survey reveals wet insulation beneath the membrane. The survey is performed in the evening after a warm day, when wet insulation retains heat differently than dry insulation, creating a temperature differential visible to an infrared camera. A professional infrared survey costs $0.05-0.15 per square foot and provides a map of wet insulation areas that correlate with undetected membrane breaches. This is particularly valuable on large roofs where a comprehensive visual inspection of every square foot is impractical.
Core Sampling
Core samples cut through the membrane and insulation to confirm damage that moisture surveys detect. A 4-inch-diameter core sample reveals the membrane condition, insulation moisture content, and substrate condition at a specific point. The core hole is patched with a membrane cap after sampling. Core sampling costs $200-400 per sample and is typically used to confirm the extent of damage identified by infrared scanning before committing to a repair scope.
Repair Methods
Membrane Patches
Small punctures and tears (under 6 inches) in single-ply membranes are repaired with a membrane patch that extends at least 6 inches beyond the damage in all directions. For TPO and PVC membranes, the patch is heat-welded to the existing membrane, creating a bond as strong as the original seam. For EPDM, the patch is applied with splice adhesive or seam tape. A properly installed patch on a clean, dry membrane is a permanent repair. Cost: $150-400 per patch depending on accessibility and membrane type.
Section Replacement
When damage is extensive — multiple punctures in a concentrated area, large tears, or widespread abrasion — patching individual damage points is less effective than replacing the membrane section entirely. Section replacement involves cutting out the damaged area, replacing wet insulation beneath it, and installing a new membrane section with welded or adhered seams overlapping the existing membrane by at least 6 inches. This approach costs $8-15 per square foot for the repaired area and restores full membrane integrity.
Insulation Replacement
Any membrane repair should include inspection of the insulation beneath the damage. If the insulation is wet, it must be removed and replaced — wet insulation does not dry out in place and loses the majority of its R-value permanently. Leaving wet insulation in place beneath a membrane repair guarantees continued problems: mold growth, deck corrosion, reduced energy performance, and eventual failure of the new membrane patch from moisture pressure below.
Repair vs. Replacement Decision
The repair-vs-replace calculation depends on the ratio of damaged area to total roof area, the age of the existing membrane, and the frequency of recurring damage. As a general guideline, if repair costs in a 12-month period exceed 30% of the cost to replace the affected roof section, replacement is the better investment. If the membrane is within five years of its expected service life, replacement is typically more cost-effective than continued repairs regardless of the repair-to-replacement cost ratio.
Recurring damage in the same area — a sign that the underlying cause has not been addressed — shifts the calculation toward replacement. Replacing the membrane in a chronically damaged area provides the opportunity to add a cover board for puncture resistance, install walkway pads for traffic protection, or reinforce the substrate. These improvements address the root cause rather than repeatedly treating the symptom.
Prevention Strategies
Preventing physical membrane damage requires controlling what happens on the roof surface. The most effective prevention strategies are straightforward and inexpensive relative to the damage they prevent:
- Walkway pads on all traffic paths — $2.00-4.00/sf installed, prevents abrasion damage along maintenance routes and around equipment
- Equipment pads under all rooftop units — structural frames that distribute weight across the deck rather than through the membrane and insulation ($500-2,000 per unit)
- Roof access policies — require all contractors working on rooftop equipment to sign off on roof protection protocols before accessing the roof
- Tool lanyards and drop protection — prevent dropped tools and fasteners from puncturing the membrane during maintenance work
- Cover board specification on new installations — a 1/4-inch high-density cover board adds $1.00-2.00/sf but significantly increases puncture and impact resistance
- Post-work inspections — inspect the membrane within 10 feet of any work area after every contractor visit, before they leave the roof
Building owners who implement these prevention measures consistently report 70-80% fewer membrane damage incidents. The combined cost of walkway pads, equipment supports, and access policies is typically less than a single emergency repair call, making prevention one of the highest-return investments in commercial roof management.
