What percentage of commercial roof leaks come from flashing failures?

Industry data consistently shows that 70-80% of commercial flat roof leaks originate at flashings — the transitions where the membrane meets walls, curbs, penetrations, and edges. The field membrane rarely fails before the flashings because flashings are subjected to greater thermal movement, more UV exposure on vertical surfaces, and mechanical stress from building movement.

How much does it cost to repair commercial roof flashing?

Wall flashing repairs typically cost $15-35 per linear foot. Curb flashing repairs around HVAC equipment cost $500-2,000 per unit depending on size and complexity. Counter flashing replacement runs $8-20 per linear foot for metal counter flashing set in reglets. Edge metal replacement costs $12-25 per linear foot installed.

Flashing Failures: Where Most Commercial Roof Leaks Start

failures account for 70-80% of all leaks on commercial flat roofs. That statistic surprises many building owners, who assume that the large field of the is the most vulnerable area. In reality, the field membrane on a properly installed system rarely fails before the flashings. Flashings are where the membrane meets walls, curbs, penetrations, and edges — every one of these transitions introduces stress, movement, and exposure conditions that the flat field does not experience.

Understanding where and why flashings fail gives building owners a significant advantage in preventing leaks and managing repair costs. A flashing repair caught early — before water has migrated into the insulation and deck — typically costs $15-35 per linear foot. The same flashing failure discovered six months later, after water has saturated the insulation and corroded the deck, can result in a repair bill 10 to 20 times higher.

Types of Flashing and How They Fail

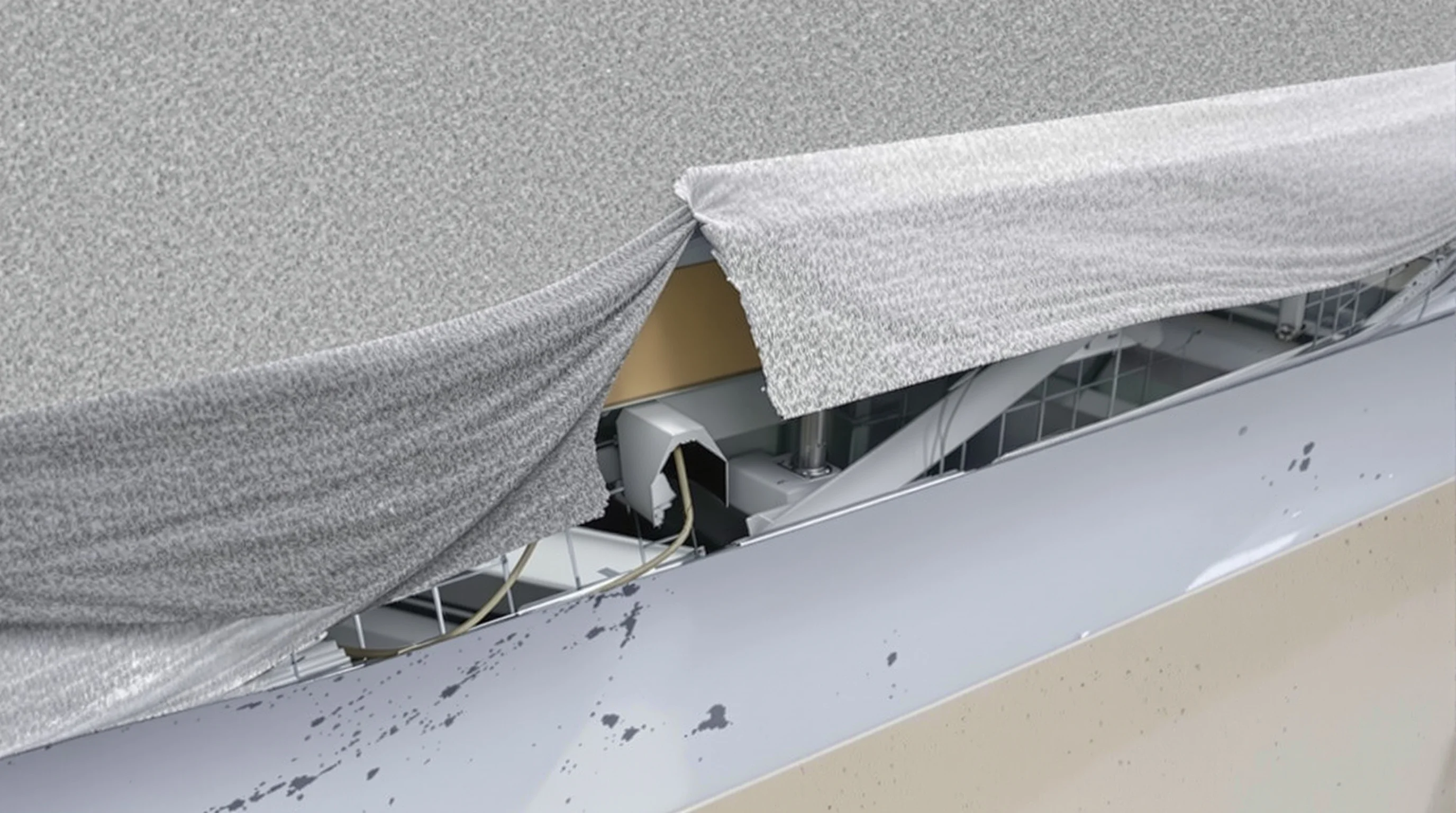

Wall Flashings (Base Flashing)

is the membrane material that turns up from the horizontal roof surface onto vertical walls — parapet walls, equipment screen walls, penthouses, and any vertical surface that intersects the roof plane. The NRCA recommends a minimum 8-inch height for base flashing above the finished roof surface. Base flashing is subjected to more thermal cycling than the field membrane because the vertical surface absorbs and radiates heat differently, causing expansion and contraction that stresses the adhesive bond or mechanical attachment.

Base flashing failure modes include delamination from the wall surface, open seams at overlaps, and splitting along the bend line where the membrane transitions from horizontal to vertical. Delamination is the most common failure: the adhesive bond between the membrane and the wall substrate weakens over time, allowing the flashing to pull away and create a gap where water enters. On masonry walls, the substrate itself may deteriorate, causing the flashing to separate even if the adhesive is intact. Repair costs for wall flashing delamination run $15-35 per linear foot depending on height and membrane type.

Counter Flashing

is a metal cap installed over the top edge of base flashing to prevent water from running behind it. On masonry walls, counter flashing is typically set into a reglet — a horizontal groove cut into the mortar joint — and sealed with sealant. On metal-clad walls, counter flashing is fastened directly to the wall surface. The critical function of counter flashing is to shed water away from the top edge of the base flashing, where gravity would otherwise direct water behind the membrane.

Counter flashing fails when the reglet sealant deteriorates, when the metal itself corrodes or is dislodged by wind, or when the original installation was set too high above the base flashing. A gap of even 1/4 inch between the counter flashing and the base flashing allows wind-driven rain to penetrate behind the membrane. Reglet sealant has a typical service life of 5-10 years and should be inspected and replaced as part of routine maintenance. Counter flashing replacement costs $8-20 per linear foot for metal counter flashing set in reglets.

Curb Flashings

Curb flashings wrap around the raised curbs that support rooftop equipment — HVAC units, exhaust fans, skylights, and access hatches. An is a rectangular frame, typically 8-14 inches tall, that elevates the equipment above the membrane surface. The membrane flashing wraps up the sides of the curb and is capped with metal counter flashing or a factory-fabricated curb cap. Curb flashings are among the most failure-prone details on any commercial roof because they combine vertical flashing, corner transitions, equipment vibration, and concentrated water flow.

Each corner of a curb flashing involves a complex fold or welded transition that is difficult to execute perfectly and is subjected to thermal stress on all four exposures simultaneously. Equipment vibration from HVAC units transmits through the curb to the flashing, gradually loosening adhesive bonds and fatiguing membrane material. Water channeled along the curb base by the roof slope concentrates moisture exposure at specific corners. Curb flashing repair costs $500-2,000 per unit depending on curb size and the number of corners affected.

Pipe and Penetration Flashings

Every pipe, conduit, wire, and support that passes through the roof membrane requires individual flashing detail. On single-ply membranes, flashings are typically prefabricated boots or field-fabricated wraps that seal the membrane to the pipe surface. On modified bitumen and BUR roofs, penetrations are flashed with multiple plies of membrane material or with pitch pockets filled with sealant. Each penetration is a potential failure point, and a building with 30 rooftop penetrations has 30 individual opportunities for flashing failure.

Penetration flashings fail when the sealant at the pipe-to-flashing interface dries out, when the flashing boot cracks from UV exposure, or when equipment modification changes the size or location of the penetration without re-flashing. Pitch pocket sealant requires inspection and replenishment every 2-3 years — a maintenance task that is frequently neglected. A single failed penetration flashing can allow significant water infiltration because water flows directly down the pipe into the building interior. Penetration flashing repair costs $150-500 per penetration depending on size and type.

Edge Metal and Perimeter Flashings

secures the membrane termination at the roof perimeter and directs water into gutters or off the building edge. Edge metal is subjected to the highest wind forces on the roof — corner zones can experience wind pressures 2.5 to 3 times higher than the field of the roof. Edge metal must be designed and fastened to meet FM Global or UL wind-uplift standards for the building's specific wind zone, exposure category, and height.

Edge metal failure modes include fastener withdrawal from the deck or nailer, metal fatigue from repeated wind cycling, and sealant failure between overlapping sections. When edge metal lifts, it exposes the membrane termination and allows wind-driven rain underneath the membrane. Progressive edge metal failure is common — once one section lifts, the adjacent sections are subjected to increased wind forces and fail in sequence. Edge metal replacement costs $12-25 per linear foot installed and should always meet current ANSI/SPRI ES-1 wind design requirements.

Inspecting Flashings

Flashing inspections should be performed at every maintenance visit and should follow a systematic approach that covers every linear foot of flashing on the roof. Walk the entire perimeter first, checking all edge metal and wall flashings. Then inspect every curb and penetration. Use this checklist at each location:

Adhesion — press on the base flashing at multiple points to check for delamination. The membrane should be firmly bonded to the wall or curb surface with no hollow areas behind it.
Seams — check all overlap seams in the flashing membrane for open edges, fish-mouths, or separation. On heat-welded membranes, probe seam edges with a rounded tool.
Sealant — inspect all caulk and sealant joints for cracking, peeling, or gaps. Counter flashing reglet sealant is particularly critical and frequently overlooked.
Metal condition — check counter flashing and edge metal for corrosion, dents, loose fasteners, and displacement from wind.
Height — confirm that base flashing extends at least 8 inches above the roof surface. Debris buildup, roof recovers, or additional insulation may have reduced the effective flashing height.

Repair Methods by Flashing Type

Wall Flashing Repair

Delaminated base flashing is repaired by cleaning both surfaces, applying new adhesive or bonding agent, and pressing the flashing firmly back against the wall. If the membrane is damaged, a new flashing strip is installed over the existing flashing with a minimum 4-inch overlap at the top and 6-inch overlap onto the field membrane. Severely deteriorated wall flashing — common on buildings over 20 years old — should be stripped and replaced entirely rather than patched.

Counter Flashing Repair

Reglet counter flashing repair involves removing the old sealant, cleaning the reglet groove, setting the counter flashing back into position, and applying new polyurethane or silicone sealant. If the reglet is deteriorated or too shallow to hold the counter flashing, surface-mounted counter flashing with a top-edge sealant bead is an acceptable alternative. All counter flashing sections should overlap at least 4 inches at joints, with sealant at each overlap.

Curb Flashing Repair

Curb flashing repairs require removing the equipment or raising it temporarily to access the flashing on all four sides. This coordination between roofing and HVAC contractors adds cost but is necessary for a complete repair. A common shortcut — patching only the visible leaking corner without inspecting the other three sides — frequently results in the leak reappearing at an adjacent corner within months. Complete curb re-flashing during equipment replacement is the most cost-effective approach.

Edge Metal Replacement

Damaged edge metal should be replaced rather than repaired, because the fastening pattern and metal integrity are critical to wind-uplift resistance. New edge metal must meet current ANSI/SPRI ES-1 requirements, which may be more stringent than the original installation standard. The membrane termination under the edge metal should be inspected and repaired as part of the edge metal replacement. Edge metal is the first flashing component to fail in a hurricane and the most critical to replace to current standards.

When Flashing Problems Indicate Larger Issues

Widespread flashing failures across multiple locations on the same roof typically indicate a systemic problem rather than isolated defects. If base flashing is delaminating in multiple areas, the adhesive or substrate preparation may have been inadequate during installation. If counter flashing sealant has failed at every reglet, the sealant type may be incompatible with the substrate. If curb flashings are failing on multiple units, the flashing detail design may be inadequate for the building's thermal movement or wind exposure.

Systemic flashing failures that appear within the first 5-7 years of a roof's life may be covered under the contractor's workmanship warranty or the manufacturer's system warranty. Document all failure locations with photographs, dates, and repair records, and submit a warranty claim before attempting widespread repairs. Warranty coverage for flashing failures varies significantly between material-only, system, and NDL warranty tiers.

Buildings with chronic flashing problems benefit from a comprehensive flashing replacement during the next re-roof project rather than ongoing repair. A complete re-flash of all walls, curbs, and penetrations during a re-roof adds 15-25% to the project cost but eliminates the most failure-prone components of the old system. Specify this work explicitly in the re-roof scope — it is not always included in a standard roofing proposal unless the building owner requests it.
