Blocked Roof Drains: A Preventable Problem

Blocked roof drains are the single most common cause of ponding water on commercial flat roofs, and they are almost entirely preventable with routine maintenance. A single clogged drain on a 10,000-square-foot roof section can cause water to accumulate across the entire area, adding thousands of pounds of unplanned dead load to the structure. The irony is that drain blockage is among the cheapest roofing problems to prevent — a quarterly clearing visit costs $200-400 — yet neglected drains cause some of the most expensive damage.

The consequences of a blocked drain extend well beyond standing water. Chronic ponding accelerates membrane degradation, voids many manufacturer warranties, and creates the conditions for progressive structural deflection. A blocked drain that goes unnoticed for a single rainy season can cause more membrane damage than five years of normal weathering.

How Roof Drains Work

A commercial roof drain consists of a cast iron or plastic body that passes through the roof deck, a clamping ring that secures the membrane to the drain body, and a strainer dome that prevents large debris from entering the piping. The drain body connects to internal downspout piping that carries water to the building's storm drainage system or to grade-level discharge. On a properly functioning system, water flows across the membrane surface toward the low point where the drain is located, passes through the strainer, enters the drain body, and exits through the downspout.

Most commercial flat roofs use interior drains rather than edge drainage because the roof area is too large for perimeter gutters alone to handle. A 20,000-square-foot roof receiving 1 inch of rainfall collects approximately 12,500 gallons of water — over 104,000 pounds. That volume must reach the drains quickly to prevent accumulation. The system works only when every component in the drainage path is clear.

Common Causes of Drain Blockage

Debris Accumulation

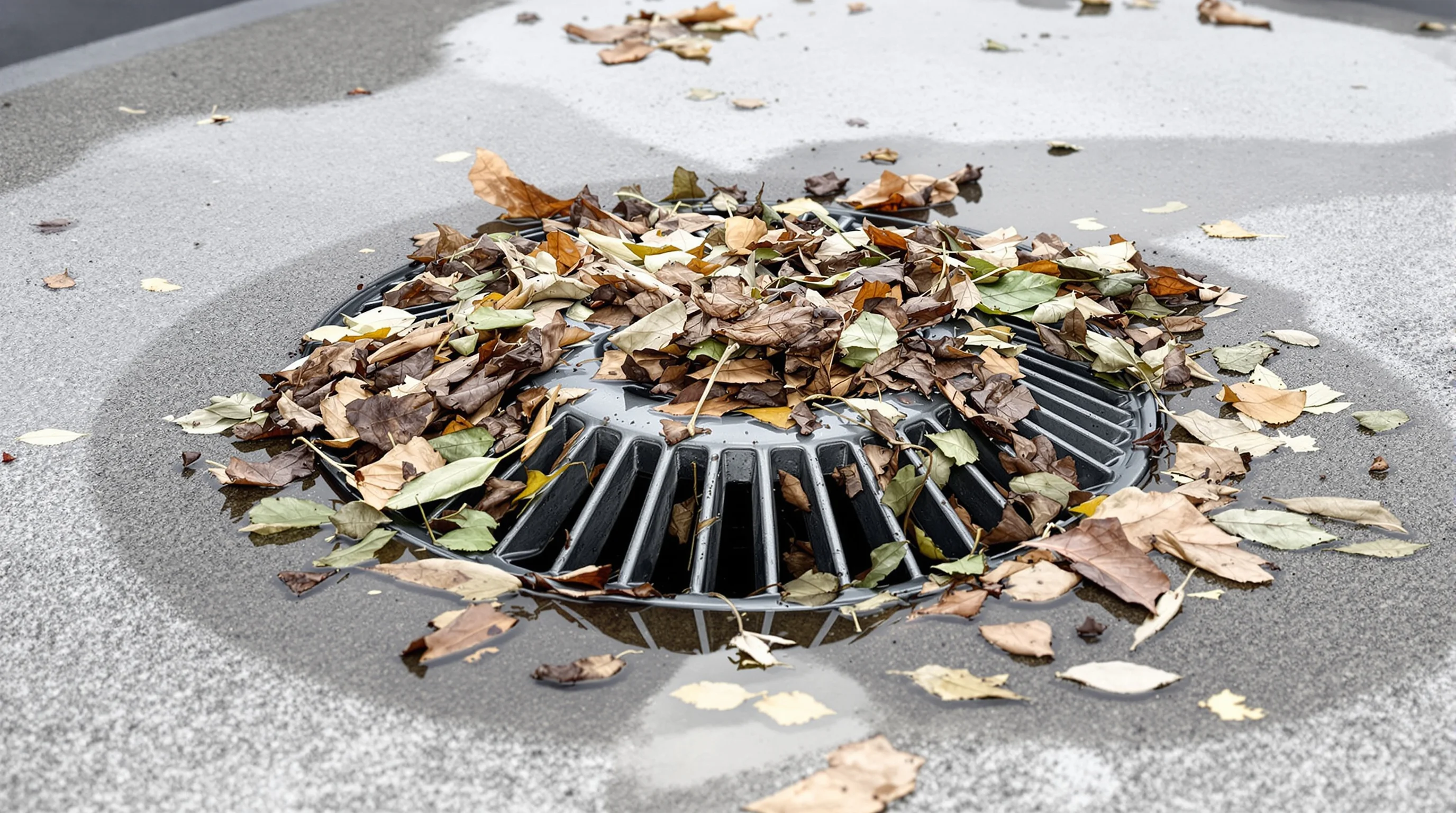

Leaves, twigs, pine needles, and windblown trash are the most frequent culprits. They accumulate around the strainer dome and gradually restrict water flow. In areas with deciduous trees, a single autumn storm can deposit enough leaves on a roof to block every drain. Even roofs without nearby trees collect windblown debris that migrates toward drain locations — the same drainage slope that moves water also moves lightweight debris.

Granule wash from modified bitumen and BUR surfaces creates a slower but equally damaging form of blockage. As the roof ages, surface granules loosen and wash toward the drains with each rainfall. These granules are heavy enough to settle inside the drain bowl and downspout, gradually restricting flow. On a 15-year-old modified bitumen roof, granule accumulation in drain bowls is nearly universal.

Biological Growth

Algae, moss, and root intrusion from wind-deposited seeds can partially or fully block drain openings. The moist environment around a drain is ideal for biological growth, especially on shaded roof sections. Root systems from small plants growing in accumulated sediment can penetrate the drain body joints and create blockages that are difficult to clear without disassembly. In Gulf Coast climates, biological growth around drains can become significant within a single growing season if not addressed.

Failed or Missing Strainer Domes

The strainer dome is the drain's first line of defense, and a missing or damaged strainer allows oversized debris directly into the piping. Strainer domes are sometimes removed during maintenance and not replaced, or they corrode and collapse on older systems. Without the strainer, branches, roofing debris, and even small animals can enter the drain pipe, creating blockages that are far more expensive to clear than surface-level debris removal.

Improper Roof Modifications

Rooftop equipment installations, membrane patches, and coating applications can inadvertently restrict or redirect drainage flow. A common scenario involves a roofing contractor applying a coating or patch that partially covers a drain opening, reducing its effective capacity by 30-50%. Equipment installations that change the roof's drainage pattern can redirect water away from existing drains, overloading some drains while leaving others underutilized.

Signs of a Blocked Drain

Ponding water near a drain location is the most obvious indicator. If water is standing within 10 feet of a drain 48 hours after rainfall, the drain is either blocked or undersized. Other warning signs include water staining on interior ceilings below drain locations, visible debris buildup around strainer domes, slow drainage during active rainfall (water rising faster than it recedes), and overflow at scupper locations that normally remain dry.

Subtle indicators are often more telling than obvious ones. Tide lines or mineral deposit rings around a drain suggest the drain is clearing slowly — water is reaching a certain depth before eventually draining. This partial blockage puts the system one storm away from full failure. Dark staining patterns radiating outward from a drain indicate water is bypassing the drain and flowing across the membrane surface instead of into it.

How to Clear Blocked Drains

Surface Clearing

Remove all visible debris from the strainer dome and the surrounding membrane area within a 3-foot radius. Lift the strainer dome and remove any debris trapped between the strainer and the drain body. Check that the clamping ring is properly seated and that the membrane is not pulling away from the drain body. This basic maintenance takes 10-15 minutes per drain and resolves approximately 60% of drainage issues.

Drain Bowl Cleaning

After removing the strainer, clear all accumulated sediment, granules, and biological growth from inside the drain bowl. Use a stiff brush and a shop vacuum to remove compacted material. Inspect the drain body for cracks, corrosion, or separation from the membrane. Flush the drain with water from a hose to confirm that it flows freely into the downspout below. Cost for professional drain bowl cleaning is typically included in a standard maintenance visit at $200-400.

Downspout Snaking

When surface clearing and bowl cleaning do not restore full drainage, the blockage is in the downspout piping below the drain. A plumbing snake or mechanical auger is fed through the drain opening into the downspout to break up and clear the obstruction. This is typically performed by a plumber rather than a roofer, as it involves interior piping. Costs for mechanical snaking range from $300 to $800 depending on pipe accessibility and blockage depth.

Hydro-Jetting

Severe or compacted blockages that resist mechanical snaking may require hydro-jetting — a high-pressure water stream that scours the pipe interior clean. Hydro-jetting is particularly effective for grease buildup (common in restaurant buildings), mineral scale, and root intrusion. The process costs $500-1,200 but restores the pipe to near-original capacity. It also provides an opportunity for the plumber to camera-inspect the piping for structural damage that may need repair.

When Drains Need Replacement

Drain replacement is warranted when the drain body itself is damaged beyond effective repair. Cast iron drain bodies on buildings built before 1990 commonly develop corrosion that thins the metal and creates leak paths. The clamping ring that secures the membrane to the drain body can corrode and lose clamping force, allowing water to seep between the membrane and the drain body — a leak that is often misdiagnosed as a membrane failure.

A replacement drain costs $800-2,500 installed, depending on drain size, pipe connections, and membrane work required. The installation involves removing the existing drain body, inspecting and preparing the deck opening, installing the new drain with a proper clamping ring, and integrating the new drain into the existing membrane with manufacturer-approved flashing details. On a re-roof project, drain replacement adds minimal incremental cost and should be standard practice for drains over 20 years old.

Consider adding supplemental drains rather than simply replacing existing ones if the roof has chronic drainage problems. A roof that was originally designed with one drain per 10,000 square feet may benefit from additional drains at $1,500-3,000 each, especially if rainfall intensity in your area has increased since the building was constructed. The NRCA recommends one drain per 100-150 linear feet of roof perimeter as a minimum guideline, though local codes and actual drainage area calculations should govern the design.

Prevention: The Quarterly Drain Maintenance Program

A quarterly drain inspection program is the most cost-effective maintenance investment a building owner can make. Schedule inspections in early spring (post-winter debris), mid-summer (check for biological growth), early fall (pre-leaf-drop preparation), and late fall (post-leaf-drop clearing). Each visit should include clearing all strainer domes, cleaning drain bowls, checking clamping rings, and documenting drain condition with photographs.

Post-storm inspections are equally important and should not wait for the next quarterly visit. After any significant storm — winds over 40 mph, heavy rainfall, or hail — inspect all drains within 24 hours. Storm debris can block drains that were clear the previous week, and the next rainfall event will compound the problem. Many maintenance programs include post-storm inspections as a standard service.

Document every drain inspection with dated photographs and a brief condition note for each drain location. This documentation serves three purposes: it demonstrates warranty compliance, it creates a timeline that reveals progressive deterioration before it becomes an emergency, and it provides evidence for insurance claims if storm-related damage occurs. A simple spreadsheet tracking drain location, date inspected, condition, and action taken is sufficient.

Frequently Asked Questions

How often should commercial roof drains be inspected?

Quarterly inspections are the industry standard minimum. Schedule inspections in early spring, mid-summer, early fall, and late fall. Additional inspections should follow any significant storm event, especially during leaf-drop season or after high-wind storms that deposit debris on the roof. Buildings surrounded by trees may need monthly inspections during fall.

How much does it cost to clear a blocked commercial roof drain?

A professional drain clearing visit typically costs $200 to $400 for a standard commercial roof. If the blockage is deep in the downspout piping and requires mechanical snaking, costs can reach $500 to $800. Hydro-jetting for severe blockages runs $500 to $1,200 depending on pipe accessibility and blockage severity. These costs are a fraction of the damage that a blocked drain can cause if left unaddressed.

When should a commercial roof drain be replaced rather than cleared?

Replace drains when the cast iron body is cracked or corroded through, the clamping ring no longer seats properly, the drain bowl is misaligned with the deck opening, or the drain has been patched multiple times without resolving chronic leaking. Replacement costs $800 to $2,500 per drain installed. On buildings over 30 years old, proactive drain replacement during a re-roof project is standard practice and adds minimal incremental cost compared to emergency replacement later.
