Membrane Blow-Off and Edge Failure: Causes and Prevention

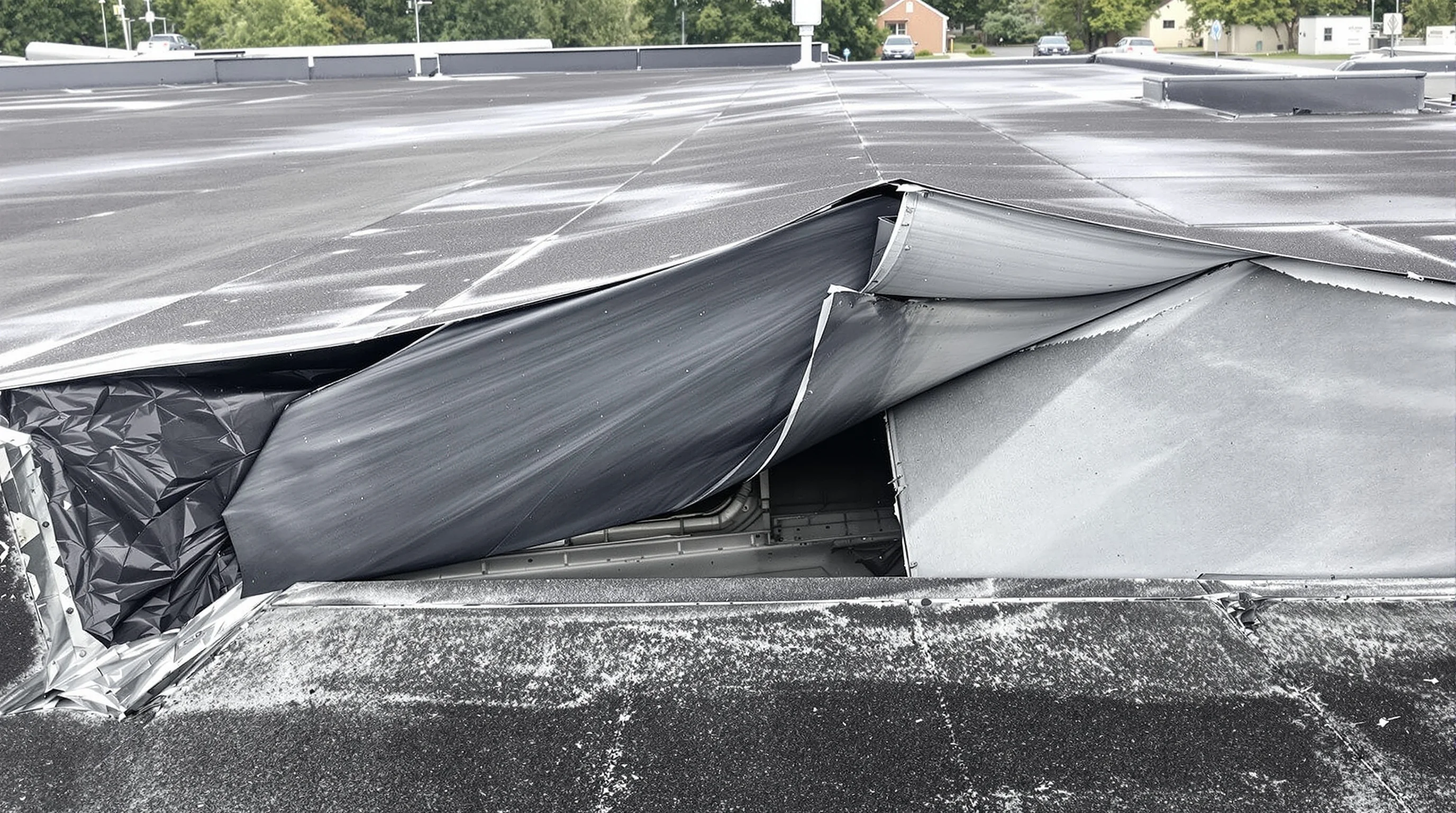

Membrane blow-off — the partial or complete displacement of a roof by wind forces — is the most catastrophic wind damage a commercial flat roof can sustain. When a membrane blows off, the building loses its primary waterproofing barrier instantly, exposing the insulation, deck, and building interior to rain, debris, and ongoing weather damage. Recovery from a blow-off event typically requires full roof replacement in the affected area at costs of $8-15 per square foot, plus interior damage repair that can easily exceed the roof replacement cost for occupied buildings.

Blow-off events are preventable through proper design, installation, and maintenance. They occur when forces exceed the membrane's attachment capacity — a condition that results from inadequate original design, deteriorated attachment over time, or wind events that exceed the design standard. Understanding the mechanics of blow-off allows building owners to identify vulnerable conditions before they become catastrophic failures.

Wind Uplift Mechanics

How Wind Creates Uplift

Wind flowing over a flat-roofed building creates negative pressure (suction) on the roof surface, similar to the lift that keeps an airplane wing airborne. The magnitude of this suction depends on wind speed, building height, exposure category (open terrain vs. urban), and the specific location on the roof. Corner zones experience the highest uplift — up to 3 times the pressure in the center field. Perimeter zones experience approximately 2 times field pressure. These multiplied pressures in corners and perimeters explain why blow-off almost always begins at the roof edge or corners.

The actual uplift force on a commercial roof during a major wind event is substantial. A 120 mph wind on a 30-foot-tall building in open terrain can generate corner uplift pressures exceeding 90 pounds per square foot. A 10-foot by 10-foot corner area at 90 psf of uplift must resist 9,000 pounds of upward force — nearly 5 tons pulling straight up on the membrane, insulation, and fasteners. If the attachment system cannot resist that load, the assembly lifts and the membrane peels inward.

Progressive Failure Sequence

Blow-off rarely happens in a single instant — it follows a progressive sequence that begins with a single point of failure and cascades across the roof. The typical sequence starts with displacement or membrane edge separation, which allows wind to enter beneath the membrane. Once wind is under the membrane, it pressurizes the membrane from below while suction continues from above, doubling the effective uplift force. This combined pressure overwhelms the attachment at the next row of fasteners or the next bond line, causing the membrane to peel further. The cascade accelerates as each failed section exposes more membrane underside to wind pressure.

The entire progressive sequence — from initial edge failure to large-area blow-off — can occur in seconds to minutes during peak gusts. This is why edge and corner securement is so critical: stopping the initial failure point prevents the entire cascade. A $2,000 edge metal repair before a storm season can prevent a $200,000 blow-off event.

Common Causes of Blow-Off

Inadequate Edge Securement

Edge metal that is fastened at 12-inch intervals with standard roofing nails — common on buildings built before the ANSI/SPRI ES-1 standard was adopted in the mid-1990s — provides far less uplift resistance than the current standard requires. ES-1 requires engineering calculations for edge metal design based on specific building parameters and typically results in fastener spacing of 3-6 inches with enhanced fastener types. Older edge metal systems may resist only 30-50% of the wind forces that a current ES-1-designed system can handle.

Wood nailers — the structural members that edge metal fasteners grip — are equally critical and equally overlooked. A perfectly fastened edge metal system fails if the nailer beneath it is rotted, undersized, or inadequately secured to the deck. Nailer inspection should be part of every roof assessment, particularly on buildings over 15 years old. Replacing a deteriorated nailer costs $8-15 per linear foot and is one of the most cost-effective wind-resistance upgrades available.

Insufficient Fastener Density

membrane systems rely on screws and plates at regular intervals to resist wind uplift. The required fastener density varies by roof zone: corner zones require the highest density (often 1 fastener per 1-2 square feet), perimeter zones require moderate density (1 per 2-4 square feet), and field zones require the lowest density (1 per 4-8 square feet). When a roof is installed with uniform fastener density across all zones — a common cost-cutting shortcut — the corners and perimeters are underattached relative to the wind forces they will experience.

Fastener pull-out resistance decreases over time as the deck corrodes, as steel deck flutes deform under sustained load, and as wood substrates deteriorate. A fastener that tested at 400 pounds of pull-out resistance on new steel deck may provide only 200 pounds after 15 years of moisture exposure and thermal cycling. FM wind-uplift ratings account for aging with safety factors, but roofs installed without FM engineering may not have adequate reserve capacity for long-term fastener degradation.

Adhesive Bond Failure

membranes depend on continuous adhesive bond to resist uplift, and that bond must maintain adequate strength across the entire roof area for the life of the system. Adhesive bond failure can result from moisture beneath the membrane (which weakens water-based adhesives), substrate contamination during installation, adhesive applied at temperatures below the manufacturer's minimum, or chemical incompatibility between the adhesive and the substrate material.

Unlike fastener failure, which is distributed at predictable points, adhesive failure can be widespread and undetectable until the wind event occurs. There is no practical way to test adhesive bond strength across an entire roof without destructive testing. The best indicators of adhesive bond integrity are the absence of blistering and ridging, proper adhesive selection and application documented during installation, and the roof's performance history during previous wind events.

FM Wind Ratings

wind-uplift ratings provide the industry standard for classifying a roof assembly's wind resistance. Ratings are expressed as FM I-60, I-90, I-120, I-150, and I-180, where the number represents the uplift pressure in pounds per square foot that the assembly resists in standardized testing. A complete FM-rated assembly specifies the membrane, insulation, attachment method, fastener pattern, edge metal, and all components as a tested system.

The required FM rating for a specific building depends on the building's geographic location, height, exposure, and roof dimensions. FM's RoofNav tool and loss prevention data sheets provide rating requirements by location. As a general reference point for Gulf Coast commercial buildings: buildings under 30 feet in urban areas typically require FM I-90 minimum; buildings over 30 feet or in open exposure may require FM I-120 or higher; buildings within 1 mile of the coast may require FM I-150 or higher. Specifying the correct FM rating is the single most important design decision for wind resistance.

Prevention Strategies

Edge Metal Upgrade

Replacing pre-ES-1 edge metal with current-standard edge metal designed to ANSI/SPRI ES-1 is the highest-priority wind-resistance upgrade for older buildings. The upgrade costs $12-25 per linear foot installed and addresses the initiation point for 80% of blow-off events. For a building with 600 linear feet of roof perimeter, the total cost of $7,200-15,000 is a fraction of the potential blow-off repair cost. Many commercial insurance policies offer premium reductions for buildings with documented ES-1 edge metal compliance.

Perimeter Fastener Densification

Adding fasteners in the corner and perimeter zones to meet FM-calculated densities is the second-highest-priority upgrade. This involves installing additional screws and plates between existing fastener rows in the outermost 4-8 feet of the roof perimeter and in each corner area. The work can be done without removing the membrane on mechanically attached systems by adding through-membrane fasteners with membrane patches at each new attachment point. Cost: $1-3 per square foot in the treated zones.

Pre-Storm Inspections

A pre-hurricane-season inspection focused specifically on wind-vulnerable details can identify conditions that would initiate blow-off during a storm. This inspection should check every linear foot of edge metal for secure fastening, verify that all perimeter membrane edges are sealed and attached, confirm that rooftop equipment and loose materials are secured, and check parapet coping for adequate fastening. Schedule this inspection annually before June 1 for Gulf Coast locations. Cost: $300-800 for a focused wind-vulnerability inspection.

Full Wind-Uplift Redesign at Re-Roof

The most comprehensive blow-off prevention opportunity comes during a re-roof project, when the entire attachment system can be designed to current FM standards. Specify the correct FM rating for your building, require zone-specific fastener patterns (not uniform field density), specify ES-1-compliant edge metal with engineered nailers, and require a manufacturer wind warranty that covers the assembly as a tested system. The incremental cost of FM-rated wind design over a generic installation is typically 5-15% of the total project cost — an investment that provides measurable risk reduction and often qualifies for insurance premium reductions that offset the additional cost within 3-5 years.

After any blow-off event, the replacement roof must be designed to resist at least the wind speed that caused the original failure. Simply reinstalling the same attachment pattern guarantees repeated failure in the next equivalent event. Use the blow-off as an opportunity to upgrade to current FM standards, which may be significantly more stringent than the standards in effect when the original roof was installed. Building code requirements for wind resistance have increased substantially in every Gulf Coast jurisdiction over the past 20 years.
